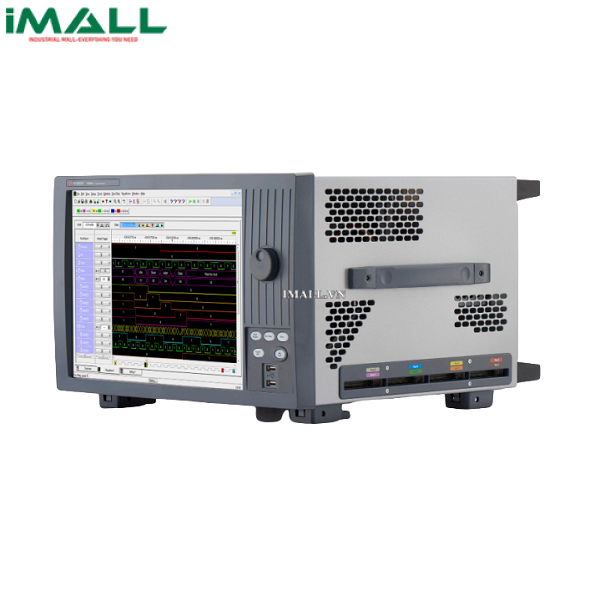

Máy phân tích logic KEYSIGHT 16861A (34 kênh; 2.5 GHz)

Technical Specifications

• Logic analyzer configuration
• 34 channels, 350 MHz state, 12.5 GHz timing zoom, 2.5 GHz timing, 2 Mb depth standard
• 15-inch (38.1 cm) color, touch-screen display for viewing and quickly navigating large numbers of signals and buses
• built-in removable SSD drive, USB 3.0 ports, and LAN for fast data transfer and storage of large amounts of data
• 1.4 GHz trigger sequencer to ensure high-speed events are captured
• Timing analysis (asynchronous sampling)
• up to 2.5 GHz/5.0 GHz (full-/half-channel) timing for capturing signal activity at high resolution
• up to 128 Mb/256 Mb (full-/half-channel) deep memory for identifying the root cause of a problem and symptom widely separated in time
• 12.5 GHz (80 ps) timing zoom with 256K memory depth for analysis of the trigger event with high resolution
• State analysis (synchronous sampling)
• state data rates up to 1.4 Gb/s, state clock rates up to 700 MHz for high-speed data capture
• automated threshold/sample position setup for accurate measurements on high-speed buses
• simultaneous eye diagrams on all channels for quick identification of problem signals
• Configuration considerations (probes and additional software ordered separately)
• Select from a wide variety of single-ended and differential general-purpose and application-specific probes.
• Add application software for insight to debug, analyze, and optimize your system’s operation.
• Purchase the speed and memory depth capability you need today and upgrade as your needs evolve. Use 16861AU to upgrade an existing 16861A.
• Includes keyboard, mouse, accessories bag, and power cord.
