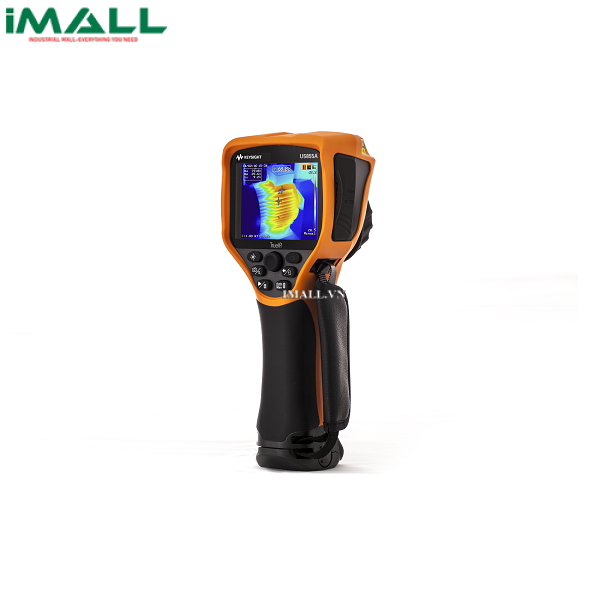

Camera đo nhiệt độ TrueIR KEYSIGHT U5855A (350°C)

Technical Specifications

• Temperature measurement range: –20 ~ 350 °C
  • Range 1: –20 to 120 °C
  • Range 2: 0 to 350 °C
• Thermal sensitivity:
  • Range 1: 0.07 °C (at 30 °C))
  • Range 2: 0.1 °C (at 30 °C)
• Accuracy: ± 2 °C or ± 2% at 0 ~ 40 °C
• Detector resolution: 160 × 120
• Fine resolution (in-camera): 320 × 240 (IR pixels)
• Spectral range: 8 to 14 μm
• Frame rate: 9 Hz
• Camera mode: IR image, visible image, picture in picture, blend
• Storage device: Supports up to 32 GB SDHC memory card with class 4 and above
• I/O: USB 2.0 mass storage NTSC/PAL via video RCA cable
• Display: 3.5” TFT
• Visible camera: 3.1 MP
• Stream, record and playback video up to 8 frames/s (via TrueIR Analysis and Reporting Tool)
• Power supply: Power adapter Line voltage range: 50/60 Hz, 100 – 240 VAC (Auto/Universal voltage), 1.2A. Output voltage: 12 VDC, 3 A
• IP rating: IP 54

Package Includes
