Product Details
Manufacturer:
Mitutoyo
Model:
series 201
Warranty:
Origin:
Nhật Bản
Technical Specifications
| Metric | ||||
| Order No. | Range (mm) | Parallelism (µm) | Measuring force* (N) | Recommended dial indicator (optional) |
| 201-101 | 0 – 25 | 5 | 15±3 | 2046SB (0.01 mm reading), 2109SB-10 (0.001 mm reading) |
| 201-102 | 25 – 50 | 5 | 15±3 | 2046SB (0.01 mm reading), 2109SB-10 (0.001 mm reading) |
| 201-103 | 50 – 75 | 5 | 15±3 | 2046SB (0.01 mm reading), 2109SB-10 (0.001 mm reading) |
| 201-104 | 75 – 100 | 5 | 15±3 | 2046SB (0.01 mm reading), 2109SB-10 (0.001 mm reading) |
| 201-105 | 100 – 125 | 5 | 15±3 | 2046SB (0.01 mm reading), 2109SB-10 (0.001 mm reading) |
| 201-106 | 125 – 150 | 5 | 15±3 | 2046SB (0.01 mm reading), 2109SB-10 (0.001 mm reading) |
| 201-107 | 150 – 175 | 5 | 15±3 | 2046SB (0.01 mm reading), 2109SB-10 (0.001 mm reading) |
| 201-108 | 175 – 200 | 5 | 15±3 | 2046SB (0.01 mm reading), 2109SB-10 (0.001 mm reading) |
| 201-109 | 200 – 225 | 5 | 15±3 | 2046SB (0.01 mm reading), 2109SB-10 (0.001 mm reading) |
| 201-110 | 225 – 250 | 5 | 15±3 | 2046SB (0.01 mm reading), 2109SB-10 (0.001 mm reading) |
| 201-111 | 250 – 275 | 5 | 15±3 | 2046SB (0.01 mm reading), 2109SB-10 (0.001 mm reading) |
| 201-112 | 275 – 300 | 5 | 15±3 | 2046SB (0.01 mm reading), 2109SB-10 (0.001 mm reading) |
| Inch | ||||
| Order No. | Range (in) | Parallelism (in) | Measuring force* (N) | Recommended dial indicator (optional) |
| 201-151 | 0 – 1 | 0.0002 | 15±3 | 2803SB-10 (0.0001 inch reading) |
| 201-152 | 1 – 2 | 0.0002 | 15±3 | 2803SB-10 (0.0001 inch reading) |
| 201-153 | 2 – 3 | 0.0002 | 15±3 | 2803SB-10 (0.0001 inch reading) |
| 201-154 | 3 – 4 | 0.0002 | 15±3 | 2803SB-10 (0.0001 inch reading) |
| 201-155 | 4 – 5 | 0.0002 | 15±3 | 2803SB-10 (0.0001 inch reading) |
| 201-156 | 5 – 6 | 0.0002 | 15±3 | 2803SB-10 (0.0001 inch reading) |
| 201-157 | 6 – 7 | 0.0002 | 15±3 | 2803SB-10 (0.0001 inch reading) |
| 201-158 | 7 – 8 | 0.0002 | 15±3 | 2803SB-10 (0.0001 inch reading) |
| 201-159 | 8 – 9 | 0.0002 | 15±3 | 2803SB-10 (0.0001 inch reading) |
| 201-160 | 9 -10 | 0.0002 | 15±3 | 2803SB-10 (0.0001 inch reading) |
| 201-161 | 10 – 11 | 0.0002 | 15±3 | 2803SB-10 (0.0001 inch reading) |
| 201-162 | 11 – 12 | 0.0002 | 15±3 | 2803SB-10 (0.0001 inch reading) |
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

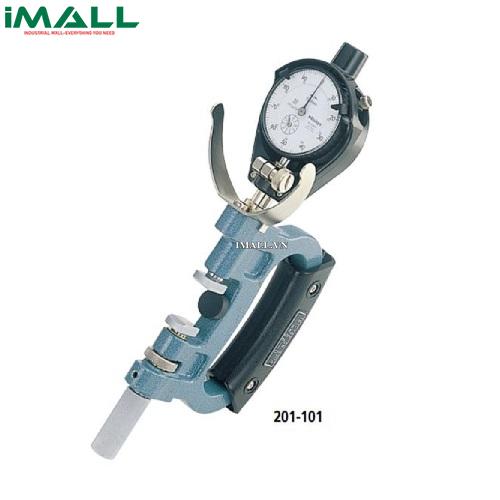

Calip ngàm kiểm tra kích thước Mitutoyo series 201
