Product Details
Manufacturer:

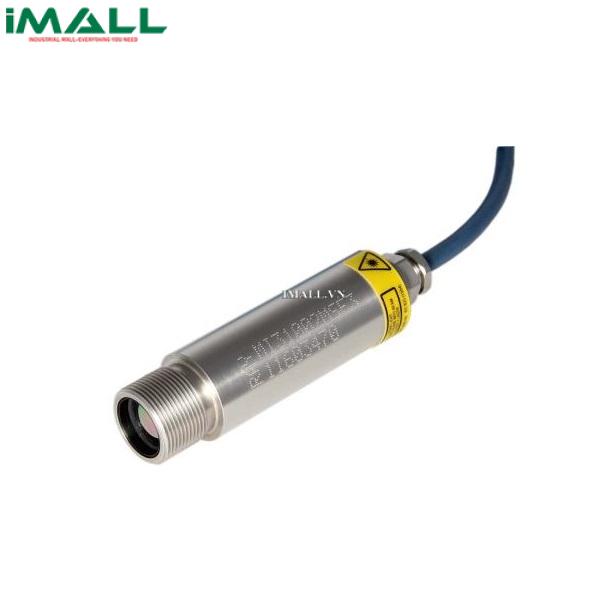

RAYTEK
Model:
RAYMI310LTS
Warranty:
Origin:
-
Technical Specifications
- Outputs: Scalable 4-20 mA, 0-20 mA, 0-10 V, 0-5 V, Type J, K, R or S Thermocouple.
- Temperature Range: -40 to 1112°F (-40 to 600°C).
- Optical Spot Ratio (Focal Point): 10:1 (1.58" spot size @ 15.75").
- Accuracy: Larger of ±1% of reading or ±2°F (1°C), or ±1% of reading or ±5°F (2.5°C) for Thermocouple.
- Repeatability: ±0.5% of reading or ±1°F (0.5°C), whichever is greater.
- Temperature Resolution: 0.2°F (0.1°C).
- Temperature Coefficient: 0.05°K per °K.
- Response Time: 130 ms (90%).
- Emissivity: 0.100 to 1.100 digitally adjustable increments of .001.
- Transmission: 0.100 to 1.000 digitally adjustable increments of .001.
- Signal Processing: Peak hold, valley hold, variable averaging filter, adjustable up to 998 seconds.
- Spectral Response: 8 to 14 µm.
- Cable: 1m (3.3') PUR cable from head to box, withstands up to 257°F (125°C).
- Housing: NEMA 4 (IP65) Rated Stainless Steel Head.
- Operational Ambient Temperature: Head: 14 to 248°F (-10 to 120°C).
- Storage Temperature: -4 to 185°F (-20 to 85°C).
- Relative Humidity: 10 to 95%, non-condensing.
- EMI/EMC/ESD: IEC EN61326-1 1:2006.
- Shock (sensing head): IEC 68-2-27 50g's, 11 ms, 3 axis.
- Vibration (sensing head): 68-2-6 3g's, 11-200 Hz, 3 axis.
- Weight: 1m cable model: 1.75 oz (50 g).
