Product Details
Manufacturer:
Megger
Model:

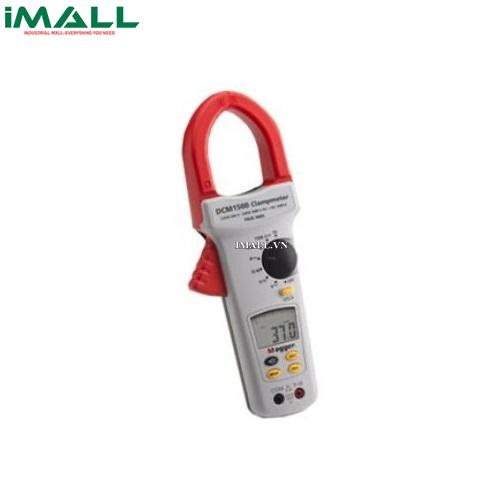

DCM1500
Warranty:
Origin:
-
Technical Specifications
- Độ chính xác:
- Dòng điện AC:
- 400 A 0.1 A ±(1.5% reading + 5 digits)* 50 Hz ~ 60 Hz 1500 A rms
- 1000 A 1 A ±(1.9% reading + 7 digits) 50 Hz ~ 60 Hz 1500 A rms
- 1500 A 1 A ±(2.5% reading + 7 digits) 50 Hz ~ 60 Hz 1500 A rms
- 400 A 0.1 A ±(1.9% reading + 5 digits)* 61Hz ~ 400 Hz 1500 A rms
- 1000 A 1 A ±(2.5% reading + 7 digits) 61 Hz ~ 200Hz 1500 A rms
- 1500 A 1 A ±(3.0% reading + 7 digits) 61 Hz ~ 200 Hz 1500 A rms
- Dòng điện DC:
- 400 A 0.1 A ±(1.0% reading + 3 digits) AC 1000 A for 1 min
- 1000 A 1 A ±(1.9% reading + 7 digits) AC 1000 A for 1 min
- 1500 A 1 A ±(2.5% reading + 7 digits) AC 1000 A for 1 min
- Điện áp AC:
- 400 V 100 mV ±(1.0% reading + 5 digits) 750 V rms
- 50 Hz ~ 500 Hz*
- 750 V 1 V ±(1.0% reading + 5 digits) 750 V rms
- 50 Hz ~ 500 Hz*
- Điện áp DC:
- 400 V 100 mV ±(0.7% reading + 2 digits) 1000 V rms
- 1000 V 1 V ±(0.7% reading + 2 digits) 1000 V rms
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
