Product Details
Manufacturer:
EXTECH
Model:
HD350
Warranty:
Origin:
CHINA
Technical Specifications
- Áp suất gió:
- Psi: 0.7252psi /0.0001psi /±0.3%FS
- Mbar: 50.00mbar /0.01mbar /±0.3%FS
- inH2O: 20.07inH2O /0.01inH2O /±0.3%FS
- mmH2O: 509.8mmH2O /0.01mmH2O /±0.3%FS
- Pa: 5000Pa /1Pa /±0.3%FS
- Khả năng lặp lại: ±0.2% (Max. ±0.5%FS)
- Độ tuyến tính: ±0.29FS
- Áp suất lớn nhất: 10psi
- Thời gian hồi đáp: 0.5s
- Vận tốc gió:
- ft/min: 200 to 15733 / 1 /±3% rdg
- m/s: 1 to 80.00 /0.01 /±3% rdg
- km/h: 3.5 to 288.0 /0.1 /±3% rdg
- MPH: 2.25 to 178.66 /0.01 /±3% rdg
- Knots: 2.0 to 154.6 /0.1 /±3% rdg
- Lưu lượng gió:
- CFM: 0 to 99,999 /0.001 /±3% rdg
- CMM: 0 to 99,999 /0.001 /±3% rdg
- Nhiệt độ :
- °C 0 to 50°C /0.1° /±1°C
- Kích thước/ trọng lượng
- Máy chính: 8.2 x 2.9 x 1.9" (210 x 75 x 50mm) / 12oz (340g)
- Ống đo Pitot : 15.4 x 7.7” (390 x 195mm) / 7.2oz (204g)
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description
Máy đo tốc độ gió, áp suất chênh lêch đường ống EXTECH HD350 (±5000Pa, 80m/s)

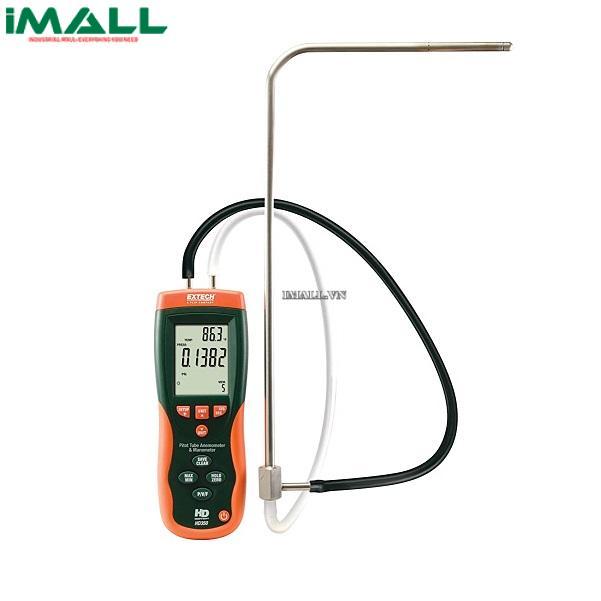

The HD350 is a Pitot tube anemometer and differential manometer. Measures Differential pressure in 5 selectable units of measure and includes a Pitot tube and 2 connection hoses for measuring Air Velocity/Air Flow. Additional features include data hold, auto power off, zero function, plus manually record/recall up to 99 readings. Built-in USB port. Complete with software and USB cable, 9V battery, pitot tube with two 33.5 in. (85 cm) connection hoses and hard carrying case. [caption id="attachment_684580" align="alignnone" width="419"]
Máy đo tốc độ gió, áp suất chênh lêch đường ống EXTECH HD350[/caption]
Tính năng chính EXTECH HD350
- Simultaneous display of Pressure, Air Velocity or Air Flow plus Temperature
- ±0.7252psi range
- 5 selectable units of pressure measurement
- Max/Min/Avg recording and Relative time stamp
- Data Hold and Auto power off functions
- Large LCD display with backlighting, USB port
- Zero function for offset correction or measurement
- Store/Recall up to 99 readings in each mode
- Includes Windows® compatible software with cable, 9V battery, pitot tube with two 33.5” (85cm) connection hoses, and hard carrying case
Thông số kỹ thuật và bộ phụ kiện của EXTECH HD350
- Pressure:Psi: 0.7252psi /0.0001psi /±0.3%FS Mbar: 50.00mbar /0.01mbar /±0.3%FS inH2O: 20.07inH2O /0.01inH2O /±0.3%FS mmH2O: 509.8mmH2O /0.01mmH2O /±0.3%FS Pa: 5000Pa /1Pa /±0.3%FS Repeatability: ±0.2% (Max. ±0.5%FS) Linearity/Hysteresis: ±0.29FS Maximum Pressure: 10psi Response Time: 0.5s typical Air Velocity: ft/min: 200 to 15733 / 1 /±3% rdg m/s: 1 to 80.00 /0.01 /±3% rdg km/h: 3.5 to 288.0 /0.1 /±3% rdg MPH: 2.25 to 178.66 /0.01 /±3% rdg Knots: 2.0 to 154.6 /0.1 /±3% rdg Air Flow: CFM: 0 to 99,999 /0.001 /±3% rdg CMM: 0 to 99,999 /0.001 /±3% rdg Temperature: °C 0 to 50°C /0.1° /±1°C Dimensions/Weight Meter: 8.2 x 2.9 x 1.9" (210 x 75 x 50mm) / 12oz (340g) Pitot Tube: 15.4 x 7.7” (390 x 195mm) / 7.2oz (204g) Includes Windows® compatible software with cable, 9V battery, pitot tube with two 33.5” (85cm) connection hoses, and hard carrying case
