MEGGER MST210 SOCKET TESTER

OVERVIEW MEGGER MST210

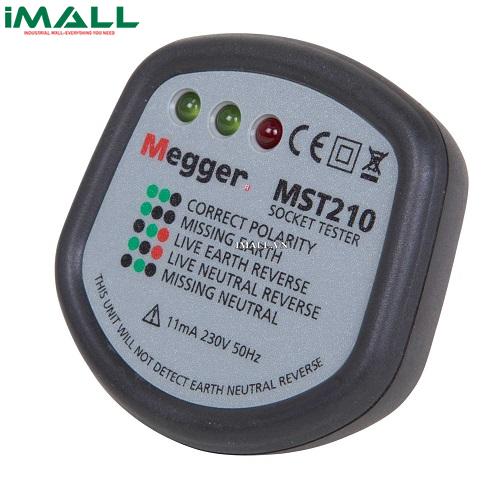

The Megger MST210 Socket Tester is a convenient, compact plug-in style tester designed to identify wiring faults at UK 13 A 3-pin power sockets. Over 17 combinations of wiring fault can be identified including missing wires and incorrect or reversed connections. Faults are signalled by 3 bright LED’s on the front of the unit, with a simple diagnosis chart for typical errors included on the label next to the LED’s. 2 green LED’s signal a correctly wired socket, and a third red LED identifies a fault. If either green LED fails to light, or the red LED comes on, a fault is present and will require further investigation. The MST210 is ideal for the initial identification of socket faults following socket replacement or re-wire work of any kind. Simple miss-wires or missing connections can be quickly identified prior to full BS7671 electrical test and inspection, so time is saved during the testing and certification process. [caption id="_0" align="alignnone" width="403"] Tổng quan Thiết bị kiểm tra ổ cắm MEGGER MST210[/caption]

FUNCTION MEGGER MST210

• Simple and effective identification of faulty wiring at sockets
• Easy to use
• 2 green and 1 red LED’s for instant error reporting and fault diagnosis
• Identifies 17 missing wire and wrong connection combinations
• Rugged and reliable

SPECIFICATIONS MEGGER MST210

• Chỉ thị: Bright LED 2 Green; 1 Red
• Cấp điện áp: 230 V AC 50/60Hz single phase
• Môi trường hoạt động: 0°C to +40°C, 0 to +40°C <95%Rh
• Đáp ứng tiêu chuẩn IEC/EN61010-1:2001-02 over voltage Cat III
  300V
• EMC IEC/EN 61326:1998
• Kích thước: 69mm x 67mm x 32mm
• Trọng lượng: 80g
