Product Details
Manufacturer:
Mitutoyo
Model:
series 468
Warranty:
Origin:
Nhật Bản
Technical Specifications
| Metric Individual | |||||
| Order No | Model | Range | Head Assy Order No. | Accuracy | Remarks |
| 468-161 | HTD-8R | 6-8mm | 04AZB136 | 2µm | – |
| 468-162 | HTD-10R | 8-10mm | 04AZB137 | 2µm | – |
| 468-163 | HTD-12R | 10-12mm | 04AZB138 | 2µm | – |
| 468-164 | HTD-16R | 12-16mm | 04AZA719 | 2µm | with TiN-coated contact points |
| 468-165 | HTD-20R | 16-20mm | 04AZA720 | 2µm | with TiN-coated contact points |
| 468-166 | HTD-25R | 20-25mm | 04AZA728 | 2µm | with TiN-coated contact points |
| 468-167 | HTD-30R | 25-30mm | 04AZA729 | 2µm | with TiN-coated contact points |
| 468-168 | HTD-40R | 30-40mm | 04AZA737 | 2µm | with TiN-coated contact points |
| 468-169 | HTD-50R | 40-50mm | 04AZA738 | 2µm | with TiN-coated contact points |
| 468-170 | HTD-63R | 50-63mm | 04AZA750 | 2µm | with TiN-coated contact points |
| 468-171 | HTD-75R | 62-75mm | 04AZA751 | 2µm | with TiN-coated contact points |
| 468-172 | HTD-88R | 75-88mm | 04AZA752 | 2µm | with TiN-coated contact points |
| 468-173 | HTD-100R | 87-100mm | 04AZA753 | 2µm | with TiN-coated contact points |
| 468-174 | HTD-125R | 100-125mm | 04AZA775 | 2µm | with TiN-coated contact points |
| 468-175 | HTD-150R | 125-150mm | 04AZA776 | 2µm | with TiN-coated contact points |
| 468-176 | HTD-175R | 150-175mm | 04AZA777 | 2µm | with TiN-coated contact points |
| 468-177 | HTD-200R | 175-200mm | 04AZA778 | 2µm | with TiN-coated contact points |
| 468-178 | HTD-225R | 200-225mm | 04AZA779 | 2µm | with TiN-coated contact points |
| 468-179 | HTD-250R | 225-250mm | 04AZA780 | 2µm | with TiN-coated contact points |
| 468-180 | HTD-275R | 250-275mm | 04AZA781 | 2µm | with TiN-coated contact points |
| 468-181 | HTD-300R | 275-300mm | 04AZA782 | 2µm | with TiN-coated contact points |
| Inch/Metric Individual | |||||
| Order No | Model | Range | Head Assy Order No. | Accuracy | Remarks |
| 468-261 | HTD-.35”R | .275-.35in 6.925-8.89mm | 04AZB139 | .0001in | – |
| 468-262 | HTD-.425”R | .35-.425in 8.89-10.795mm | 04AZB140 | .0001in | – |
| 468-263 | HTD-5”R | .425-.5in 10.795-12.7mm | 04AZB141 | .0001in | – |
| 468-264 | HTD-.65”R | .5-.65in 12.7-16.51mm | 04AZA721 | +/- .0001in | with TiN-coated contact points |
| 468-265 | HTD-.8”R | .65-.8in 16.51-20.32mm | 04AZA722 | +/- .0001in | with TiN-coated contact points |
| 468-266 | HTD-1”R | .8-1in 20.32-25.4mm | 04AZA730 | +/-.00015in | with TiN-coated contact points |
| 468-267 | HTD-1.2”R | 1-1.2in 25.4-30.48mm | 04AZA731 | +/-.00015in | with TiN-coated contact points |
| 468-268 | HTD-1.6”R | 1.2-1.6in 30.48-40.64mm | 04AZA739 | +/-.00015in | with TiN-coated contact points |
| 468-269 | HTD-2”R | 1.6-2in 40.64-50.8mm | 04AZA740 | +/-.00015in | with TiN-coated contact points |
| 468-270 | HTD-2.5”R | 2-2.5in 50.8-63.5mm | 04AZA754 | +/-.00015in | – |
| 468-271 | HTD-3”R | 2.5-3in 63.5-76.2mm | 04AZA755 | +/-.00015in | with TiN-coated contact points |
| 468-272 | HTD-3.5”R | 3-3.5in 76.2-88.9mm | 04AZA756 | +/-.00015in | with TiN-coated contact points |
| 468-273 | HTD-4”R | 3.5-4in 88.9-101.6mm | 04AZA757 | +/-.00015in | with TiN-coated contact points |
| 468-274 | HTD-5”R | 4-5in 101.6-127mm | 04AZA783 | +/-.0002in | with TiN-coated contact points |
| 468-275 | HTD-6”R | 5-6in 127-152.4mm | 04AZA784 | +/-.0002in | with TiN-coated contact points |
| 468-276 | HTD-7”R | 6-7in 152.4-177.8mm | 04AZA785 | +/-.0002in | with TiN-coated contact points |
| 468-277 | HTD-8”R | 7-8in 177.8-203.2mm | 04AZA786 | +/-.0002in | with TiN-coated contact points |
| 468-278 | HTD-9”R | 8-9in 203.2-228.6mm | 04AZA787 | +/-.0002in | with TiN-coated contact points |
| 468-279 | HTD-10”R | 9-10in 228.6-254mm | 04AZA788 | +/-.0002in | with TiN-coated contact points |
| 468-280 | HTD-11”R | 10-11in 254-279.4mm | 04AZA789 | +/-.0002in | with TiN-coated contact points |
| 468-281 | HTD-12”R | 11-12in 279.4-304.8mm | 04AZA790 | +/-.0002in | – |
| Metric Set | ||||
| Order No | Range | Indv Range | Setting Rings Incl. | Remarks |
| 468-971 | 6-12mm | 6-8,8-10,10-12 mm | Ø8mm,Ø10mm | with extension rod |
| 468-972 | 12-20mm | 12-16,16-20 mm | Ø16mm | with extension rod/with TiN-coated contact points |
| 468-973 | 20-50mm | 20-25,25-30,30-40,40-50 mm | Ø25mm,Ø40mm | with extension rod/with TiN-coated contact points |
| 468-974 | 50-100mm | 50-63,62-75,75-88,87-100 mm | Ø62mm,Ø87mm | with extension rod/with TiN-coated contact points |
| 468-975 | 100-200mm | 100-125,125-150,150-175,175-200 mm | Ø125mm,Ø175mm | with extension rod/with TiN-coated contact points |
| 468-981 | 6-12mm | 6-8,8-10,10-12 mm | Ø8mm,Ø10mm | – |
| 468-982 | 12-25mm | 12-16,16-20,20-25 mm | Ø16mm,Ø20mm | with TiN-coated contact points |
| 468-983 | 25-50mm | 25-30,30-40,40-50 mm | Ø30mm,Ø40mm | with TiN-coated contact points |
| 468-984 | 50-75mm | 50-63,62-75 mm | Ø62mm | with TiN-coated contact points |
| 468-985 | 75-100mm | 75-88,87-100 mm | Ø87mm | with TiN-coated contact points |
| Inch/Metric Set | ||||
| Order No | Range | Indv Range | Setting Rings Incl. | Remarks |
| 468-976 | .275-0.5in 6.925-12.7mm | .275-35,.35-.425,.425-.5 | .35 in DIA.,.425 in DIA | with extension rod |
| 468-977 | .5-0.8in 12.7-20.32mm | .5-.65 in, .65-.8 in | .65 in DIA | with extension rod/with TiN-coated contact points |
| 468-978 | .8-2in 20.32-50.8mm | .8-1 in,1-1.2 in, 1.2-1.6 in,1.6-2 in | 1 in DIA.,1.6 in DIA | with extension rod/with TiN-coated contact points |
| 468-979 | 2-4in 50.8-101.6mm | 2-2.5 in,2.5-3 in,3-3.5 in,3.5-4 in | 2.5 in DIA.,3.5 in DIA | with extension rod/with TiN-coated contact points |
| 468-980 | 4-8in 101.6-203.2mm | 4-5 in,5-6 in,6-7 in,7-8 in | 5 in DIA., 7 in DIA | with extension rod/with TiN-coated contact points |
| 468-986 | 0.275-0.5in 6.925-12.7mm | .275-.35 in,.35-.425 in,.425-.5 in | .35 in DIA.,.425 in DIA | – |
| 468-987 | 0.5-1in 12.7-25.4mm | .5-.65 in,.65-.8 in, .8-1 in | .65 in DIA.,.8 in DIA | with TiN-coated contact points |
| 468-988 | 1-2in 25.4-50.8mm | 1-1.2 in,1.2-1.6 in,1.6-2 in | 1.2 in DIA.,1.6 in DIA | with TiN-coated contact points |
| 468-989 | 2-3in 50.8-76.2mm | 2-2.5 in,2.5-3 in | 2.5 in DIA. | with TiN-coated contact points |
| 468-990 | 3-4in 76.2-101.6mm | 3-3.5 in,3.5-4 in | 3.5 in DIA. | with TiN-coated contact points |
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

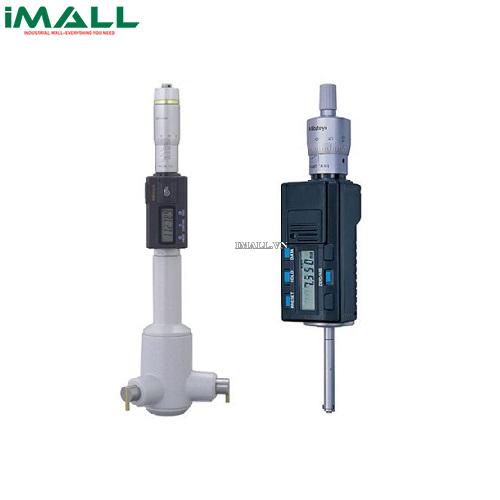

Panme đo lỗ ba chấu điện tử Mitutoyo series 468
- Dòng panme đo trong điện tử đo lỗ 3 chấu series 468 với màn hình LCD lớn (chiều cao ký tự 7,4 mm) giúp đọc nhanh chóng các chỉ số.
- Chân đo được phủ titan mang lại độ bền mài mòn và khả năng chống va đập cực tốt.
- Chỉ cần một pin SR44 và thời lượng pin xấp xỉ. 1,2 năm trong điều kiện sử dụng bình thường.
- Chế độ đo ABSolute và INCremental cho phép hoạt động hiệu quả cao.
- Tiêu chuẩn bảo vệ cấp IP65 cho phép sử dụng thiết bị khi có chất làm mát bắn tung tóe.
- Các phép đo có thể được thực hiện gần với đáy của lỗ mù.
- Các lỗ sâu có thể được đo bằng cách gắn Thanh nối dài (tùy chọn).
- Với chức năng khóa kết quả đo giúp hạn chế làm sai lệch giá trị trong quá trình đo do thao tác sai
- Có cổng kết nối với máy tính và kết nối với hệ thống kiểm soát đo lường.
