UNI-T UT3208+ Series Multi-channel Temperature Tester User Manual(-200~1800°C; 8CH)
Product Details
Manufacturer:
UNI-T
Model:
UT3208+
Warranty:
Origin:
CHINA
Technical Specifications
- Kênh: 8
- Loại đầu vào: Cặp nhiệt điện: J/K/T/E/S/N/B/R
- Phạm vi đo: -200~1800°C
- Độ phân giải: 0.01
- Tốc độ quét: 100ms
- Hiển thị biểu đồ: Đồ thị, biểu đồ, số
- Giao diện: RS232, LAN
- Màn hình: LCD 4.3 inch
- Bộ so sánh: Giới hạn trên và dưới, Âm báo và màn hình hiển thị
- Bù điểm lạnh: có
- Bản ghi dữ liệu: Đĩa flash USB 8G
- Phần mềm thu thập dữ liệu: Máy tính trên
- Kích thước: 214mm×89mm×340mm
- Trọng lượng: 3.4kg
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description
UNI-T UT3208+ Series Multi-channel Temperature Tester User Manual(-200~1800°C; 8CH)

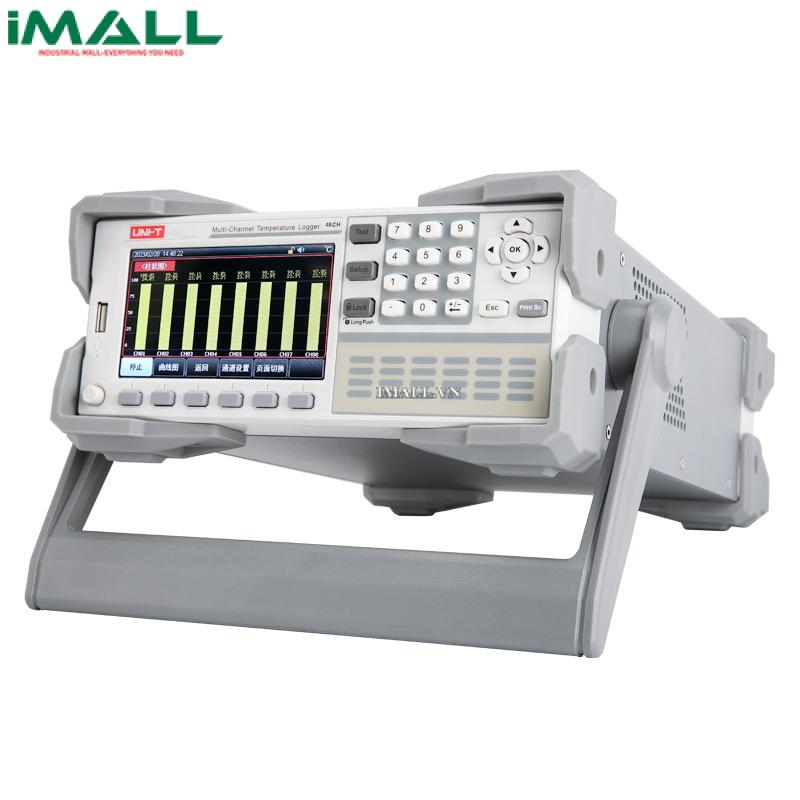

UT3200+ series multi-channel temperature tester includes six models UT3208+, UT3216+, UT3224+, UT3232+, UT3240+ and UT3248+, which respectively corresponding to 8, 16, 24, 32, 40 and 48 channels. User can purchase the temperature tester according to their needs. [caption id="attachment_798513" align="aligncenter" width="488"]
Front Panel[/caption]
UT3208+ series adopts 4.3 inch LCD and support J, K, T, E, S, N, B, R thermocouple input. Multi-channel temperature data can be collected at the same time, with intuitive numerical reading, histogram and curve chart display, so that user can read the parameter with multiple modes or save the data in USB. The instrument has the alarm for over upper/lower limit and communication transmission function. Its perfect function and performance can meet the needs of production, laboratory and R&D measurements.
[caption id="attachment_798514" align="aligncenter" width="573"]
UNI-T UT3208+ Series Multi-channel Temperature Tester User Manual[/caption]
See more at: IMALL specializes in providing good equipment and quality assurance. Warranty up to 12 months
Main Characteristics
- 4.3 inch true color LCD
- Wide range of adaptability, supports Type K/N/E/J/T/R/S/B thermocouple
- Measurement range: -200℃－1800℃
- The main parameters of the temperature test are displayed in 6 digits, and the resolution is 0.01℃.
- Two scanning rate: fast (according to different model), slow
- Automatic detection of open-circuit thermocouple
- Direct numerical value reading, histogram and curve chart display mode.
- Cold junction compensation
- 8G USB and USB HOST interface, USB storage
- File management can keep the current setup of the instrument.
- The instrument is equipped with Type K thermocouple test line 2 meters, it can measure the temperature range -20℃－200℃.
- Alarm for over upper/lower limit. Alert for reading changing of over-limit. The upper limit and lower limit of temperature data in each channel can be set.
- RS-232C, LAN, DC24V external power supply interface. Supports SCPI and MODBUS RTU protocol.
- It suitable for standard 2U cabinet.
-
If you want to buy measuring equipment, Imall will take care of it : Contact Type ThermometerIn short, UT3208+ not only stands out with its diverse features and stable performance but is also a versatile and convenient tool for measuring and monitoring temperature parameters in industrial and research applications.
