Product Details
Manufacturer:
UNI-T
Model:
UT3232+
Warranty:
Origin:
CHINA
Technical Specifications
- Kênh: 8, 16, 24, 32
- Loại đầu vào: Cặp nhiệt điện: J/K/T/E/S/N/B/R
- Phạm vi đo: -200~1800℃
- Độ phân giải: 0.01
- Tốc độ quét: 100ms
- Hiển thị biểu đồ: Đồ thị, biểu đồ, số
- Giao diện: RS232, LAN
- Màn hình: LCD 4.3 inch
- Bộ so sánh: Giới hạn trên và dưới, Âm báo và màn hình hiển thị
- Bù điểm lạnh: có
- Bản ghi dữ liệu: Đĩa flash USB 8G
- Phần mềm thu thập dữ liệu: Máy tính trên
- Kích thước: 214mm×89mm×340mm
- Trọng lượng: 3.4kg
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

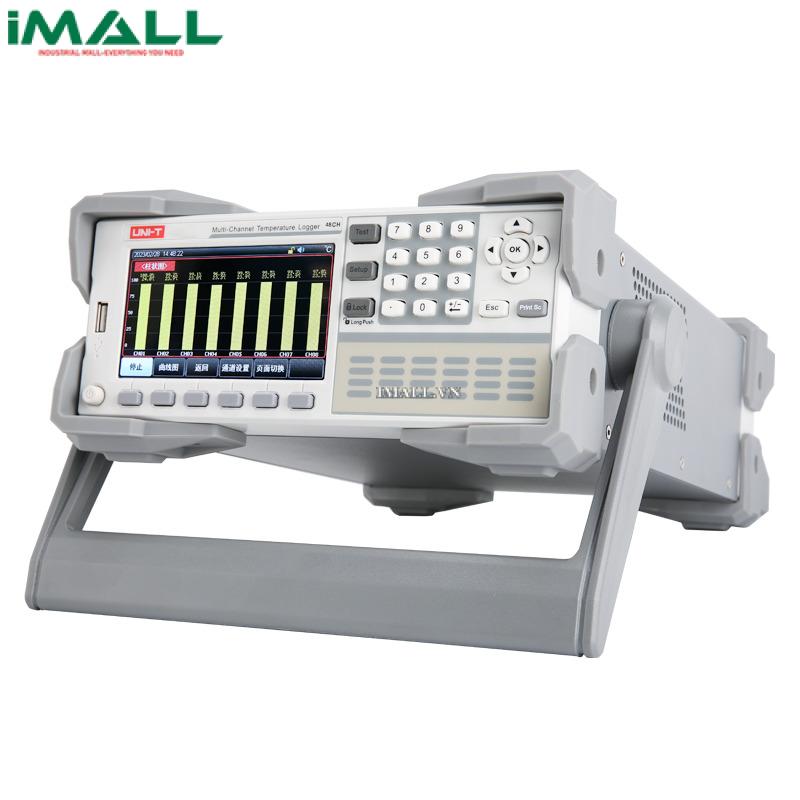

UNI-T UT3232+ series multi-channel temperature tester (-200~1800℃ , 32CH)
UT3200+ series multi-channel temperature tester includes six models UT3208+, UT3216+, UT3224+, UT3232+, UT3240+ and UT3248+, which respectively corresponding to 8, 16, 24, 32, 40 and 48 channels. User can purchase the temperature tester according to their needs. UT3232+ series adopts 4.3 inch LCD and support J, K, T, E, S, N, B, R thermocouple input. Multi-channel temperature data can be collected at the same time, with intuitive numerical reading, histogram and curve chart display, so that user can read the parameter with multiple modes or save the data in USB. The instrument has the alarm for over upper/lower limit and communication transmission function. Its perfect function and performance can meet the needs of production, laboratory and R&D measurements.
[caption id="_0" align="alignnone" width="562"]
UNI-T UT3232+ series multi-channel temperature tester[/caption]
The instrument is equipped with RS232C interface, data acquisition, analysis and printing can be realized through the standard computer software. The instrument supports real-time storage of sampling data. User can calibrate data of each channel independently.It widely used in lighting appliances, electric tools, household appliances, electric motors, electric heating appliances, medicine, petroleum, chemical, metallurgy, electric power industries and scientific research institutions in the field of production lines, laboratories, quality control departments.
Front Panel[/caption]
[caption id="attachment_798629" align="alignnone" width="600"]
Rear Panel[/caption]
UNI-T UT3232+ series multi-channel temperature tester[/caption]
The instrument is equipped with RS232C interface, data acquisition, analysis and printing can be realized through the standard computer software. The instrument supports real-time storage of sampling data. User can calibrate data of each channel independently.It widely used in lighting appliances, electric tools, household appliances, electric motors, electric heating appliances, medicine, petroleum, chemical, metallurgy, electric power industries and scientific research institutions in the field of production lines, laboratories, quality control departments.
Main Characteristics
- 4.3inch true color LCD
- Widerange of adaptability, supports Type K/N/E/J/T/R/S/B thermocouple
- Measurement range:-200℃－1800℃
- Themain parameters of the temperature test are displayed in 6 digits, and the resolution is 01℃.
- Twoscanning rate: fast (according to different model), slow
- Automatic detection ofopen-circuit thermocouple
- Directnumerical value reading, histogram and curve chart display
- Coldjunction compensation
- 8GUSB and USB HOST interface, USB storage
- Filemanagement can keep the current setup of the
- Theinstrument is equipped with Type K thermocouple test line 2 meters, it can measure the temperature range -20℃－200℃.
- Alarmfor over upper/lower Alert for reading changing of over-limit. The upper limit and lower limit of temperature data in each channel can be set.
- RS-232C, LAN,DC24V external power supply Supports SCPI and MODBUS RTU protocol.
- It suitable for standard 2U cabinet.
Front Panel[/caption]
[caption id="attachment_798629" align="alignnone" width="600"] Rear Panel[/caption]
