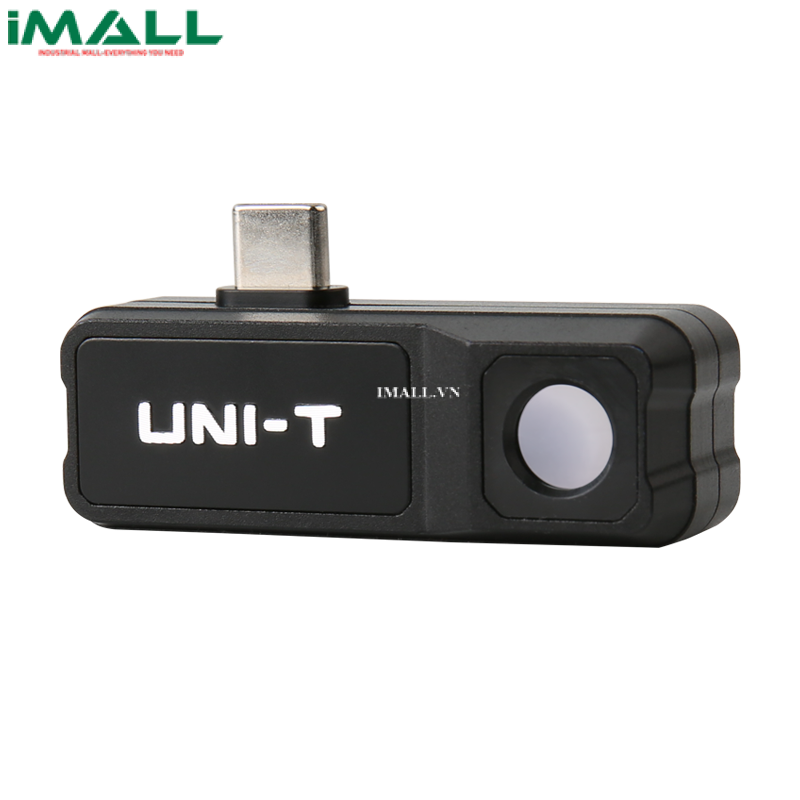

UNI-T UTi120M Smartphone Thermal Camera Module for Android (-20°C ~ 400°C)

0 ₫ 0.0 VND 0 ₫

0 ₫

Kết hợp này không tồn tại.

Thêm vào giỏ hàng

Điều khoản và điều kiện
Hoàn tiền trong 30 ngày
Giao hàng: Từ 2-3 ngày làm việc

Product Details

Manufacturer:

UNI-T

Model:

UTi120M

Warranty:

Origin:

CHINA

Technical Specifications

IR resolution (Pixels) 120×90
Field of view(FOV) 50°×38°
Thermal sensitivity(NETD) ≤60mK @25℃
Spatial resolution(IFOV) 7.3mrad
Frame rate ≤25Hz
Focus Focus free
Lens focal length 2.28mm
Temperature measurement range -20℃ ~ 400℃
Temperature scale /
Measurement modes /
Accuracy ±2℃ or ±2%
whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Color palettes 7 (White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)
Image modes Thermal,Fusion,PIP
On screen analyzer 6 Points/6 Lines /6 Rectangles/6 Circles
Auto alarm for high/low temperature √
Video recording √
USB Type-C
Drop proof 1m
Image/Video storage format JPEG,MP4
Certificates CE,UKCA,FCC,RoHS

Package Includes

Import Information

HS Code:

Estimated Import Tax:

0,00

Customs Description

UNI-T UTi120M Smartphone Thermal Camera Module for Android

UTi120M is a professional smartphone thermal camera module for Android, which is compact, portable, and easy to operate through connecting with mobile phones. UTi120M rovides clear image with a fast response, and can also detect temperature up to 400℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc. Mô đun camera ảnh nhiệt cho điện thoại Android UNI-T UTi120M (-20°C ~ 400°C)

Mô đun camera ảnh nhiệt cho điện thoại Android UNI-T UTi120M (-20°C ~ 400°C)

UNI-T UTi120M Smartphone Thermal Camera Module for Android

Features of UNI-T UTi120M Smartphone Thermal Camera Module for Android

IR resolution: 120×90
Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
On display screen analyzer: 6 Points/6 Lines /6 Rectangles/6 Circles
Image capture
Video recording
Color palettes: 7 (White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
Phone: Android (USB Type-C interface)
1m extension cable
1m drop proof
