Product Details
Manufacturer:
UNI-T
Model:
UTi32
Warranty:
Origin:
CHINA
Technical Specifications
- IR resolution (Pixels) 32×32
- Display 2.4″ IPS (480*320)
- Field of view(FOV) 30°×30°
- Thermal sensitivity(NETD) 0.15℃
- Frame rate ≤9Hz
- Focus Focus free
- Temperature measurement range -20℃ ~ 1000℃
- Accuracy ±2℃ or ±2%
- whichever is greater
- Emissivity 0.01~1.00 adjustable, (0.95 default)
- Color palettes Ironbow, Rainbow, Black hot
- Image modes Thermal,Visual image,Fusion
- Digital camera resolution 300000 pixels
- Hi/Lo temperature alarm Icon
- PC software analysis √
- Battery Fixed Li-ion battery (3.7V 2600mAh)
- Battery operation time >7 hours
- USB Type-C
- Storage 16G Mirco SD card
- Image/Video storage format BMP
- Certificates CE,UKCA,FCC,RoHS
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

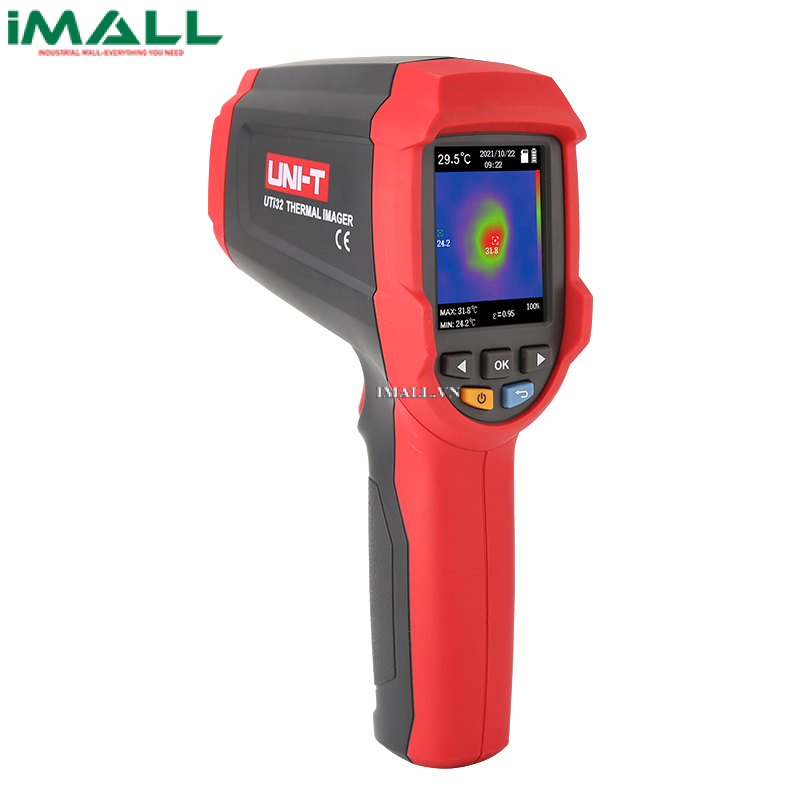

UNI-T UTi32 High Temperature Thermal Camera
UTi32 is a high temperature thermal camera that specially designed for higher temperature applications，such as: iron forging, glassware & porcelain production, petrochemical, metallurgy, etc. It can quickly detect the temperature from -20℃ to 1000℃ and auto tracking and alarm for high/low spot. UTi32 is a portable and lightweight thermal imager with 300000 pixels digital camera, with three image modes: thermal, visual image, fusion,it also support PC software analysis, and more than 7 hours battery operation time. It is an affordable and reliable tool for high temperature inspection.
- Temperature range: -20℃~1000℃ / -4℉ ~1832℉
- IR resolution: 32×32
- Display: 2.4″ IPS (480*320)
- Digital camera resolution: 640×480
- Image modes: Thermal,visual image,fusion
- Auto tracking and alarm for high/low spots
- Support PC software analysis
- Portable and lightweight
- More than 7 hours battery operation time
- With LED light
Applications of UTi32
Electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection,iron forging, glassware & porcelain production, petrochemical,metallurgy etc.
