Product Details
Manufacturer:
UNI-T
Model:
UTi384G
Warranty:
Origin:
CHINA
Technical Specifications
- IR resolution (Pixels) 384×288
- Display 3.5‘’ IPS Touch (640×480)
- Field of view(FOV) 42°×30°
- Thermal sensitivity(NETD) ≤40mK
- Spatial resolution(IFOV) 1.91mrad
- Frame rate ≤25Hz
- Focus Manual
- Temperature measurement range -20℃~550℃
- Accuracy ±2℃ or ±2% （whichever is greater）
- Emissivity 0.01~1.00 adjustable (0.95 default)
- Color palettes 7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
- Image modes Thermal,Visual image,Fusion,PIP
- On screen analyzer 5 Points/5 Lines/5 Rectangles/5 Circles
- Digital camera resolution 5MP
- Digital zoom 2x, 4x
- Hi/Lo temperature alarm Icon
- Isotherm 5(Auto/Manual/Above/Below/Section)
- Software analysis PC+APP
- Video recording √
- Voice recording √
- Wi-Fi / Bluetooth √ / √
- GPS —
- Laser pointer √
- Laser distance measurement —
- Battery Detachable Li-ion battery pack(3.7V 5200mAh)
- Battery operation time About 5 hours (with Wi-Fi off)
- USB Type-C
- IP rating IP54
- Drop proof 2m
- Storage 8GB Internal (32GB External)
- Image/Video storage format pic: JPEG
- video: MP4/irgd
- Certificates CE,UKCA,FCC,RoHS
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

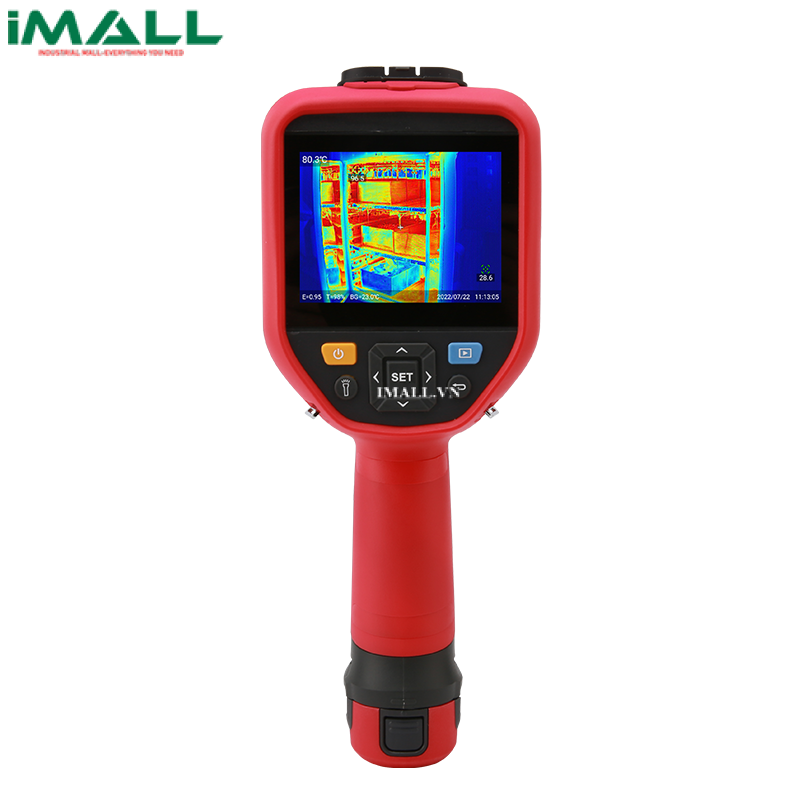

UNI-T UTi384G Professional Enhanced Thermal Camera
UTi384G is a professional enhanced thermal cameras that specially designed for industrial use with high IR resolution 384×288 and wide temperature range:-20℃~550℃. The professional manual focus lens can flexibly adjust the focal length according to different objective’s distance and provide high quality image. The 3.5’’ large IPS touch screen take more efficient and convenient operation experience for users. UTi384G also support various outstanding functions: such as Wi-Fi, voice recording, video recording, laser pointer, on screen analyzer,Isotherm,etc. They are perfect troubleshooting tools for many industrial applications.
UNI-T UTi384G Professional Enhanced Thermal Camera
- 3.5″ IPS touchscreen (640×480)
- IR resolution:384×288
- Temperature measurement range: -20℃ to 550℃
- On screen analyzer :5 Points/5 Lines/5 Rectangles/5 Circles
- Digital camera resolution: 5MP
- Focus: Manual focus
- Digital zoom: 2x, 4x
- Wi-Fi and Bluetooth connection through Mobile App
- PC software: analysis and real-time image projection
- Video recording
- Voice recording
- Image modes: Thermal,Visual image,Fusion,PIP
- Color palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
- Isotherm: 5(Auto/Manual/Above/Below/Section)
- 5200mAh replaceable battery pack (Type-C rechargeable)
- IP54
- 2m drop proof
Applications of UTi384G
Solar panel inspection, electric power tower inspection, electricity facilities inspection, automotive maintenance，mechanical equipment inspection, heating equipment inspection, building&HVAC inspection and other wide range applications: petrochemical,metallurgy,industry etc.
Detailed image: UNI-T UTi384G
