Product Details
Manufacturer:
UNI-T
Model:
UTx318
Warranty:
Origin:
CHINA
Technical Specifications
- Technical Data
- Detector type UFPA (Vanadium oxide)
- IR resolution 384×288
- Pixel size 12μm
- Spectral range 8-14μm
- Thermal sensitivity(NETD) ≤40mK
- Lens focal length 18mm/F1.0
- Focus Manual
- Field of view(FOV) 14.6°×11°
- Frame rate ≤50Hz
- Display 0.4”LCOS
- Display resolution 1280×960
- Storage 16GB Internal
- USB Type-C
- IP rating IP67
- Drop proof 2m
- Battery 3.6V/4000mAh Li-ion battery
- Battery operation time ≥8 Hours
- Certificates UL,RoHS,CE,UKCA
- Product size 207.6mm×62mm×62mm
- Product net weight 428g
- Functions
- Digital zoom 2x, 4x / 1.0~4x continuous
- Color palettes 5（Black hot, White hot, Hottest, Ironbow, Rainbow）
- Hot trace √
- Calibration modes Shutter,Background,Auto
- DDE (Digital Detail Enhancement) Details & Edge
- Laser pointer √ (650nm)
- Photo capture √
- PC software analysis √
- Video output MCX interface
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

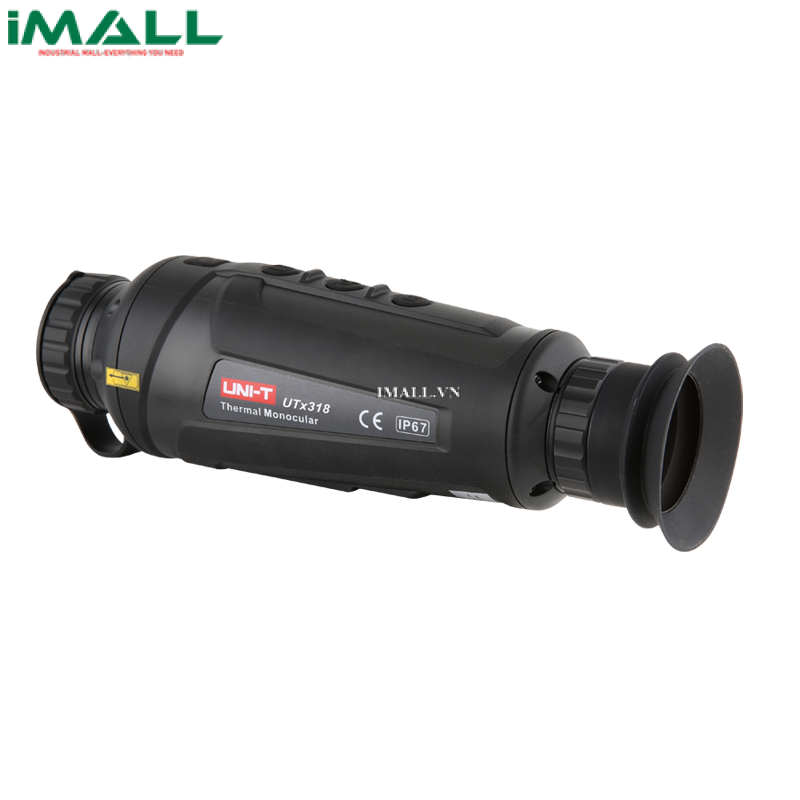

UNI-T UTx318 Thermal Imaging Monocular
UTx318 is a lightweight and portable thermal imaging monocular that equipped with a 384×288 infrared detector and a 1280×960 0.4”LCOS display. This thermal imaging monocular can take photos, storage and connect to the external screen for viewing. The 50Hz frame frequency enables users to observe moving objects without delay. With hot spot tracking take accurately location and tracking; It can be widely used in many applications: outdoor observation, hunting, navigation, security, camping &search, law enforcement etc.
UNI-T UTx318 Thermal Imaging Monocular
- Lightweight and portable
- IR resolution: 384×288
- Display: 1280×960 0.4”LCOS
- Hot trace
- Color palettes: 5(Blackhot, Whitehot, Hottest, Ironbow, Rainbow)
- PC software analysis
- IP67
- 2m drop proof
Applications of UNI-T UTx318 Thermal Imaging Monocular
Animal observation, hunting, navigation, security, camping &search, law enforcement etc.
Animal observation
